Introduction: Why Your Wiper Refills Are a Big Deal
Let’s be honest: wiper refills don’t get the glory. We think about them only when our windshield becomes a streaky, blurry mess during a downpour, compromising our safety and visibility.
But here’s a little-known fact: replacing just the rubber refill is often up to 50% cheaper than buying a whole new wiper blade assembly. If you’re driving a car that’s more than a few years old, mastering the wiper refill is one of the smartest, most economical maintenance skills you can learn.
This comprehensive guide is your one-stop resource. We will demystify the entire process, from understanding the different types of refills to a foolproof installation method. By the end of this article, you’ll be equipped with the knowledge to confidently purchase and fit the perfect wiper refills for your vehicle, ensuring a crystal-clear windshield without breaking the bank.
What Exactly Are Wiper Refills? (And Are They Right for You?)
A wiper blade is made up of two main parts:
The Frame/Metal Assembly: The superstructure that holds the blade against the windshield.
The Refill (or Wiper Rubber): The flexible, rubber-edged strip that does the actual wiping.

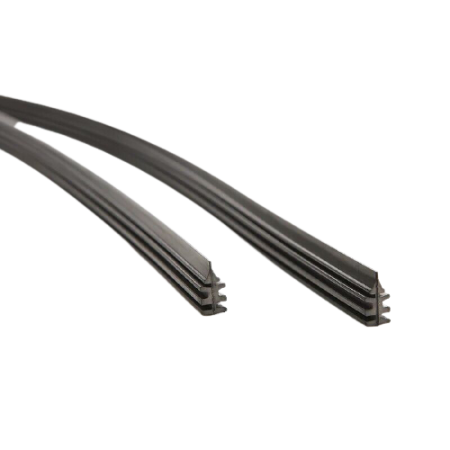

A wiper refill is simply a replacement for that worn-out rubber strip. Instead of throwing away the perfectly good metal frame, you just slide in a new piece of rubber.
Wiper Refills vs. Whole Blades: Which Should You Choose?
This is a critical question. Here’s a quick breakdown to help you decide:
Choose Wiper Refills If… Choose Whole Blades If…
Cost You want the most budget-friendly option. Budget is less of a concern.
Vehicle Age Your car’s original wiper arms and frames are in good condition. Your car’s wiper frames are rusty, damaged, or outdated.
Convenience You don’t mind a 5-10 minute DIY job. You prefer the absolute easiest “clip-and-go” installation.
Performance Your current frame design is still effective. You want to upgrade to a newer, more advanced beam-style blade.
The bottom line: If your existing wiper frames are fine, refills are the clear winner for cost-effectiveness.
Step 1: How to Find the Correct Wiper Refill Size and Type for Your Car
This is the most crucial step. Getting the wrong size or type is the number one reason people get frustrated with refills.
Method 1: The Most Accurate Way – Use Your Old Refill
The single best way to get the correct replacement is to remove your old refill and take it with you to the store or use it to match online. We’ll cover safe removal in the fitting section below. Once it’s out, you can:
Measure its exact length in inches or millimeters.
Identify its specific attachment type (see next section).
Look for any part numbers printed on the rubber itself.
Method 2: Check Your Vehicle’s Owner Manual
Often overlooked, your car’s manual will frequently specify the exact wiper blade (and sometimes refill) sizes required.
Method 3: Use Online Selector Tools (With Caution)
Websites like Supercheap Auto, Repco, and Tridon have excellent vehicle lookup tools. You enter your car’s make, model, and year, and it will show you compatible products. Pro Tip: Always cross-reference the results with the measurements of your current blades for double assurance.
A Note on Sizes:
Wiper refills are not “one size fits all.” They are typically sold in precise lengths (e.g., 22″, 450mm, 26″). Even a 5mm difference can cause poor performance or damage. Precision is key.
Step 2: Decoding the Different Types of Wiper Refill Attachments
This is where many people get stuck. Wiper refills have different “feet” or connectors that clip into the wiper frame. Here are the four most common types you’ll encounter:
Pin-Type (or Hook-Type) Refills: These have little plastic pins or hooks on the ends. They are designed to clip into traditional, frame-style wiper arms that have a “saddle” and a locking mechanism.
How to Identify: Look for small, rigid plastic tabs on each end of the rubber strip.
Side Lock (or Slide Lock) Refills: These are one of the most common types. The refill has grooves running along its sides and is held in place by the metal claws of the wiper frame.
How to Identify: The metal frame will have multiple small arms that press into the side channels of the refill.
Push-Button Refills: As the name suggests, these often require you to press a button or a specific tab on the wiper frame to release the old refill and lock the new one in place.
How to Identify: Look for a prominent button or release lever on the wiper frame where the refill connects.
Beam Blade Refills (OTB – One-Time-Band): Modern “beam” or “flat blade” wipers often use a different system. The rubber is usually held in by a metal spine and a single, long clip. Replacing these can be trickier and sometimes isn’t intended by the manufacturer, which is why whole blade replacements are more common for this type.
How to Identify: Your wiper is a single, sleek piece of rubber and metal without a visible frame.
Expert Tip: When in doubt, take a clear, well-lit photo of the end of your wiper blade where the rubber meets the frame. Show this to a sales assistant or use it to compare with online product images.
Step 3: A Foolproof, Step-by-Step Guide to Fitting Your New Wiper Refills
Safety First: Before you start, carefully place a folded towel or a wiper arm cover over the windshield where the wiper arm would rest if it fell. A spring-loaded wiper arm snapping back onto the glass can easily crack your windshield.
Tools You’ll Need:
Your new wiper refills.
A pair of needle-nose pliers (often helpful, but not always essential).
A small flat-head screwdriver.
A cloth or towel.
The Universal Fitting Process:
Remove the Wiper Arm: Lift the wiper arm away from the windshield until it locks in the “service position.”
Inspect the Connection: Closely examine how the old refill is held in place at the center of the wiper frame. This is the primary attachment point.
Release the Old Refill:
For Pin-Type: You will usually need to squeeze two small plastic tabs on the wiper frame’s connector to release the pin.
For Side Lock: Find the primary tab at the center or end of the frame. Press this tab and simultaneously slide the old refill out of the frame’s claws.
For Push-Button: Press the button firmly and you should be able to slide the refill out.
Use your pliers or screwdriver gently if a tab is stubborn, but be careful not to break the plastic components.
Slide Out the Old Rubber: Once the primary clip is released, carefully slide the entire rubber refill out from the series of metal arms holding it. Pay attention to its orientation.
Prepare the New Refill: Take your new refill. Notice the metal reinforcement spine? This needs to be aligned correctly. The spine usually sits against the metal arms of the frame.
Insert the New Refill:
Start by feeding the new refill into the series of metal claws on the frame, following the same path the old one took out.
Make sure the spine is correctly seated. You may need to flex the refill slightly to get it to pop into each claw.
Slide it through until the end connector (the pin, hook, or tab) clicks securely into the primary locking mechanism at the center. You should hear and feel a definitive click.
The Final Check: Gently tug on the refill to ensure it’s locked in place along its entire length. Do not pull the wiper by the rubber.
Lower the Arm Gently: Carefully lower the wiper arm back onto the windshield.
Repeat and Test: Repeat the process for the other wiper(s). Before driving, use your windshield washer fluid to test the wipe. Look for any skipping or streaking, which could indicate an improper fit.
Common Wiper Refill Problems and Solutions
Problem: The refill won’t slide into the frame claws.
Solution: Don’t force it. Double-check that you have the correct type and that the metal spine is aligned. A tiny amount of silicone spray on the spine can help it slide in.
Problem: The refill is too long/too short.
Solution: You have the wrong size. Refills can be trimmed in some cases, but only if they are designed for it (with a “cut-to-fit” indicator). It’s always better to buy the correct length.
Problem: The new wiper chatters or skips.
Solution: This is often due to a build-up of wax, bugs, or grime on the windshield. Thoroughly clean the glass with a dedicated automotive glass cleaner and isopropyl alcohol. Also, ensure the refill is fully seated in all the frame’s claws.
Top Brands for Wiper Refills in Australia
When shopping, you’ll likely encounter these reputable brands known for quality and durability:
Tridon: A market leader with a massive range of refills to fit almost every vehicle on the road.
Bosch: A premium global brand offering excellent performance and longevity.
Valeo: Another top-tier OEM supplier known for its durable rubber compounds.
Final Verdict: Are Wiper Refills Worth It?
Absolutely.
For the vast majority of drivers with traditional frame-style wiper blades, opting for refills is a no-brainer. It’s a simple, cost-effective, and environmentally friendly maintenance task that takes only minutes but dramatically improves driving safety.
You don’t need to be a mechanic to change a wiper refill. You just need the right information and a little confidence. By following this guide, you have everything you need to achieve a perfect, streak-free wipe and keep your wallet happy.
Frequently Asked Questions (FAQ) About Wiper Refills
Q1: How often should I replace my wiper refills?
A: A good rule of thumb is every 6-12 months, depending on your climate and sun exposure. If you notice streaking, squeaking, or reduced visibility, it’s time for a change.
Q2: Can I use universal “cut-to-fit” refills?
A: Yes, but with caution. They can be a good budget option if they match your attachment type. However, pre-sized refills often provide a more precise and secure fit.
Q3: My car has rear wipers. Can I get refills for those too?
A: Yes! The process for finding and fitting a rear wiper refill is exactly the same. Just be sure to check the specific size and attachment type, as they are often different from the front wipers.
Q4: Where can I buy wiper refills?
A: You can purchase them via our website, if youve purchased our wiper blades in the past and added the refills with your purchase, this ensures the blades you have are refillable. You can also check the underside of your wiper for the openings so the rubber can feed out of them
When you buy our wiper blades, we give you the option of buying refills for them during the checkout process via a prompt. If you opt for the refills, we will ensure the blades supplied are refillable and if you have one of our refillable wiper blades, you can buy refills for them below.
If you are unsure if your blades are refillable, get in touch with us via the contact form.
Wondering how our refills fit into the blades? See below.
Push
Lift
Pull
